Exhaust Valve for auto

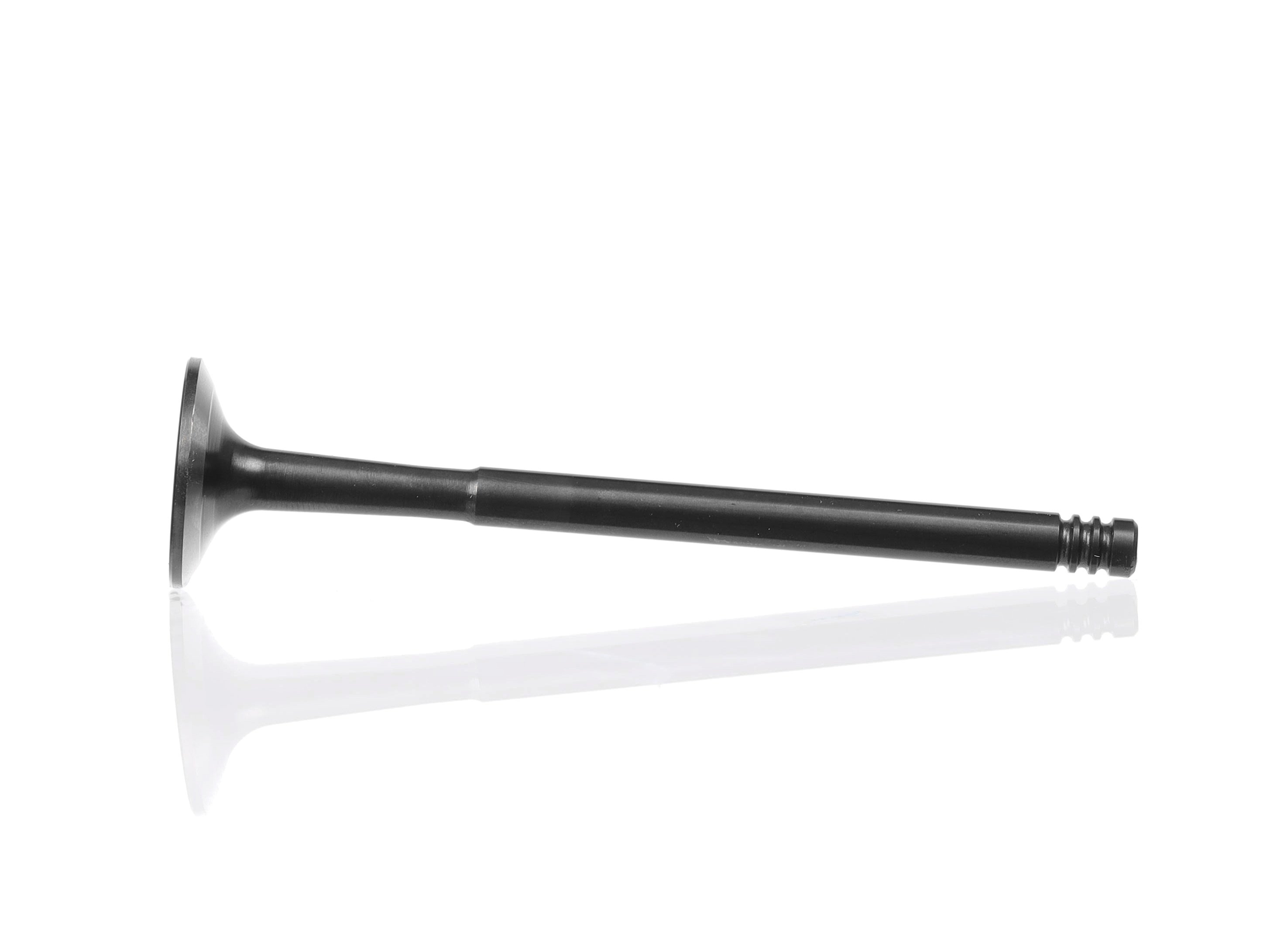

Engine auto parts: Exhaust Valve

In order to operate a piston engine and the valves, as well as opening and closing during the gas exchange, the air inlet and exhaust gas outlet, a mechanism called valve gear or valve actuator starts. One of the valves is called exhaust valve. It opens the channels for the release of the burnt gases after the expansion stroke. To withstand the high temperatures and corrosion caused by exhaust gases, for optimum heat transfer the exhaust valve usually is hollow and filled with liquid sodium. Heat goes into the handle with the help of sodium and vibration.

Almost all 4-stroke engines have a piston engine. Not valves but pistons, rotating spools, or membranes are mainly used in two-stroke engines and exclusively in rotary-piston engines for gas distribution. The exception are 2-stroke diesel engines, which have the exhaust valve with control. The valves are opened by cranked shafts that are operated by camshafts. They are closed with pneumatics, mechanics, or coil springs. Engines vary by camshafts and valves location. For example, IOE (Inlet Over Exhaust ) engines use only outlet valves . Other use SV(Side Valves) engines. In the OHV (Over Head Valves) engines the valves are hanging in the cylinder head. The most popular is OHC (Over Head Camshaft) engine. In this case, the camshafts are located above the surface of the connector and the combustion chamber between the cylinder block and the head.

If you need exhaust valve for a particular car brand, for example, Ford, you can easily find it in our range of spare car parts by the car maker’s number listed in the documents for the car. Also in our Internet store you will find inlet valves, valve nozzles and expansion valves.

How to detect malfunction of the exhaust valve

First, the valve is to be visually inspected, and its condition evaluated. Check whether the component is located correctly, and whether the valve face size is sufficient. Ideally, the width of the latter should be 1.15-1.5 mm. After that, measure the clearance between the component and the piston. To do so, pull out the piston as much as possible. The optimum clearance is 2.5 mm. If the measurement result is less than this value, the valve may hit the piston, which will immediately destroy the valve.

Besides, it is necessary to check how much the component is fouled. If the component has considerable carbon deposit, or combustion residues and oil decomposition products, the component is to be cleaned. For cleaning, use compositions that contain alcohol.

You may notice that the exhaust valve may need diagnostics by the following symptoms:

  • the pressure of exhaust gas has increased;
  • the combustible mixture spontaneously ignites in the cylinders of the engine;
  • fuel consumption has increased;
  • Check Engine lights on the dashboard;
  • the engine gets overloaded quickly;
  • too much moisture gets condensed on the engine;
  • smell of exhaust fumes in the passenger compartment.

The reasons of the exhaust valve malfunctions

Exhaust valves are intended for operating in an aggressive environment: they are constantly exposed to high pressure, chemicals and extreme temperature, which sometimes exceeds 650°C. Therefore, their manufacturing requires especially strong materials and careful observance of the technological process. Even the slightest errors during manufacturing significantly reduce the service life of the components. Today, factory defects are the most common reasons of exhaust valve failure.

In many cases, the failure of the valves is caused by their systematic overheating. It may be caused by various reasons, including the use of poor quality fuel. Low octane fuel causes detonation during combustion. This results in an abrupt increase of the temperature, and in premature wear of the component. Similar consequences may be caused by malfunctions in the fuel supply system, which hinders the process of forming the combustible mixture. Constant exposure to critically high temperature may result in deformation of the valve stem, and the component may get jammed.

Incorrectly adjusted valve clearances, incomplete seating of the valve head in the valve seat, accumulation of carbon deposit on the contacting surfaces, wear of separate elements and their fouling, and slackened return spring significantly reduce the efficiency of heat exchange processes. As a result, the head of the valve exposed to constant overheating burns through, cylinder tightness is lost, and the engine malfunctions.

Repairing and replacing the exhaust valve

Repair cannot eliminate damage of the component.  Despite the fact that the valve is made of a very strong metal alloy, if the valve is melted or deformed, it should be replaced.

To install a new component, remove the cylinder head. Therefore, replacement should be entrusted to a service station.

After replacing the valve, it should be seated in the cylinder head. A special grinding compound is used for this purpose.

In order to properly assemble the engine, we recommend marking its elements during disassembly. After the engine is installed, a trial drive should be made at a medium engine speed.

Popular Exhaust Valve manufacturers
Original Exhaust Valve from IPSA producer Original Exhaust Valve from TRW Engine Component producer Original Exhaust Valve from MAHLE ORIGINAL producer Original Exhaust Valve from ET ENGINETEAM producer Original Exhaust Valve from FRECCIA producer Original Exhaust Valve from AE producer Original Exhaust Valve from FEBI BILSTEIN producer Original Exhaust Valve from INTERVALVES producer
Original Exhaust Valve from JP GROUP producer Original Exhaust Valve from TOPRAN producer Original Exhaust Valve from ASHIKA producer Original Exhaust Valve from PETERS ENNEPETAL producer Original Exhaust Valve from BLUE PRINT producer Original Exhaust Valve from DT producer Original Exhaust Valve from SWAG producer Original Exhaust Valve from KOLBENSCHMIDT producer
Top quality parts Exhaust Valve for your car
Buy AE Outlet valve V94201 for car at low price £ 9,21
-23%
£ 9,21
£ 11,96
incl. 20% VAT, Shipping
x Outlet valve | AE V94201
Parts Details
  • Length [mm]: 103,600
  • Material: Bi-metal
  • Supplementary Article/Info 2: Chromed valve stem, Stellite covered valve seat, Valve stem tip hardened
  • Valve head diameter [mm]: 29,000
  • Valve stem diameter [mm]: 6,000
  • Valve seat angle [°]: 45
  • Valve Seat Material: Chrome-nickel-magnesium-steel
  • Valve stem material: Chrome-silicon-steel
In stock Details
Buy AE Outlet valve V94692 for car at low price £ 8,65
-23%
£ 8,65
£ 11,24
incl. 20% VAT, Shipping
x Outlet valve | AE V94692
Parts Details
  • Length [mm]: 101,800
  • Material: Bi-metal
  • Supplementary Article/Info 2: Chromed valve stem, Valve stem tip hardened
  • Valve head diameter [mm]: 28,000
  • Valve stem diameter [mm]: 6,000
  • Valve seat angle [°]: 45
  • Valve Seat Material: Chrome-nickel-magnesium-steel
  • Valve stem material: Chrome-silicon-steel
In stock Details
Buy FRECCIA Outlet valve R6348/RCR for car at low price £ 7,88
-23%
£ 7,88
£ 10,24
incl. 20% VAT, Shipping
x Outlet valve | FRECCIA R6348/RCR
Parts Details
  • Valve head diameter [mm]: 31,1
  • Valve stem diameter [mm]: 6
  • Length [mm]: 102,8
  • Valve seat angle [°]: 45
  • Supplementary Article/Info 2: Chromed valve stem
  • Material: Chrome-Mangan-Nickel Steel
  • Connector type: S
In stock Details
Buy AE Outlet valve V94499 for car at low price £ 6,71
-23%
£ 6,71
£ 8,72
incl. 20% VAT, Shipping
x Outlet valve | AE V94499
Parts Details
  • Length [mm]: 107,500
  • Material: Chrome-nickel-magnesium-steel
  • Valve head diameter [mm]: 28,000
  • Valve stem diameter [mm]: 5,500
  • Valve seat angle [°]: 45
In stock Details
Buy FRECCIA Outlet valve R6565/BM for car at low price £ 7,67
-23%
£ 7,67
£ 9,96
incl. 20% VAT, Shipping
x Outlet valve | FRECCIA R6565/BM
Parts Details
  • Valve head diameter [mm]: 26
  • Valve stem diameter [mm]: 6
  • Length [mm]: 99,1
  • Valve seat angle [°]: 45
  • Material: Bi-metal
  • Valve Seat Material: Chrome-Mangan-Nickel Steel
  • Valve stem material: Chrome-silicon-steel
  • Connector type: I
In stock Details
Buy FEBI BILSTEIN Outlet valve 21216 for car at low price £ 17,68
-23%
£ 17,68
£ 22,96
incl. 20% VAT, Shipping
x Outlet valve | FEBI BILSTEIN 21216
Parts Details
  • Notches / Holes Number: 3
  • Weight [kg]: 0,035
In stock Details
Buy FRECCIA Outlet valve R4865/RCR for car at low price £ 8,65
-23%
£ 8,65
£ 11,24
incl. 20% VAT, Shipping
x Outlet valve | FRECCIA R4865/RCR
Parts Details
  • Valve head diameter [mm]: 30,5
  • Valve stem diameter [mm]: 6
  • Length [mm]: 105,6
  • Valve seat angle [°]: 45
  • Supplementary Article/Info 2: Chromed valve stem
  • Material: Chrome-Mangan-Nickel Steel
  • Connector type: I
In stock Details
Buy ET ENGINETEAM Outlet valve VE0105 for car at low price £ 6,71
-23%
£ 6,71
£ 8,72
incl. 20% VAT, Shipping
x Outlet valve | ET ENGINETEAM VE0105
Parts Details
  • Length [mm]: 104,4
  • Valve stem diameter [mm]: 6
  • Valve head diameter [mm]: 24,5
  • Valve seat angle [°]: 45
  • Material: Chrome-Mangan-Nickel Steel
  • Supplementary Article/Info 2: Chromed valve stem
In stock Details
